Fields Included from Active Directory

Profiles of users in OfficeMaps contain a number of fields which can be synchronised automatically with on-premise Active Directory or Azure AD if this login method has been selected.



Note: The fields First Name, Last Name, Display Name and the email address for each user will always be required and used during the synchronisation process.

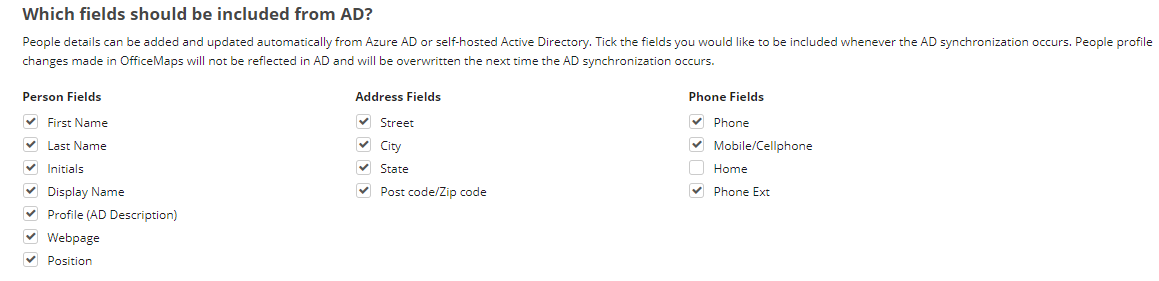

The fields in OfficeMaps which will be synchronised, aswell as their corresponding field values are presented in the following table:

OfficeMaps Field	Active Directory Field	Azure AD Field
First Nam	First Name	GivenName
Last Name	Last Name	Surname
Initials	Initials	Initials *
Display Name	Display Name	DisplayName
Profile	Description	Description *
Webpage	Web Page	wwwhomepage *
Position	Job Title	JobTitle
Phone	Telephone Number	BusinessPhones (first value)
Mobile/Cellphone	Mobile	MobilePhone
Phone Extension	IP Phone	IPPhone *
Department	Department	Department
Reports To	Manager	Manager

* This field also requires Tenant Schema Extension App Client ID to be set in the Integration. If you do not have an on-prem AD that links to Azure AD you will not be able to synchronise this field.
